61 71... Cable adjustment car wash hose pipe
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
On vehicles with production date up to 11/2010, engine compartment lid, cable and hose pipe for car wash are installed as replacements as of 11/2010. In this case, the cable for car wash hose pipe must be adjusted.

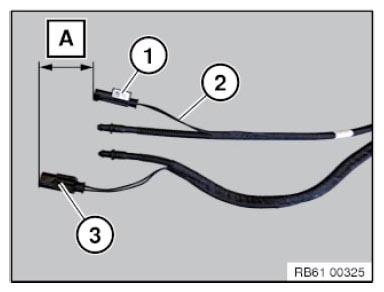

(1): Cable with car wash hose pipe from 11/2010
(3): Cable with car wash hose pipe up to 11/2010
Extend cable (2) by piece (A) so that connector (1) is level with connector (3).
Required parts from BMW Parts Department:
- 2 x socket contact 0 005 199
- 2 x butt connector 8 353 746
- 2 x heat-shrink tubing 1 379 833
