61 31 214 Removing and installing/replacing switch for Electronic Damper Control (Sport switch)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove TRIM FOR GEAR SELECTOR SWITCH

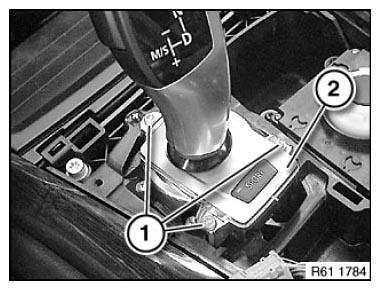

Release screws (1).

Raise trim (2) slightly.

Fig 1: Identifying Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

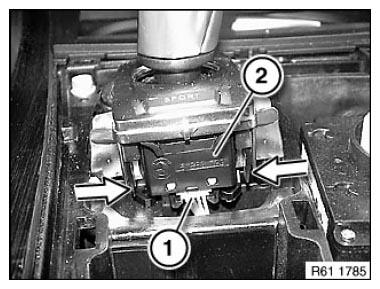

IMPORTANT: Plug connection (1) must not be disconnected.

Unlock switch for Electronic Damper Control (2) and remove downwards from trim.

Installation:

Make sure switch for Electronic Damper Control (2) engages correctly on trim.

Fig 2: Unlocking Switch For Electronic Damper Control

Courtesy of BMW OF NORTH AMERICA, INC.

Remove GEAR SELECTOR SWITCH CARRIER (3) .

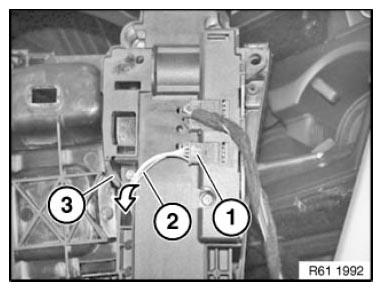

Disconnect plug connection (1).

Feed wiring harness (2) in direction of arrow out of gear selector switch carrier (3) and remove switch for Electronic Damper Control.

Fig 3: Feeding Wiring Harness Out Of Gear Selector Switch Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
