61 31 195 Removing and installing (replacing) front controller (from 10/2009)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!
Before dismantling it is imperative to note whether the controller is installed with a version before or after 10/2009!

NOTE: The number of buttons and shape of controller can vary depending on vehicle type.

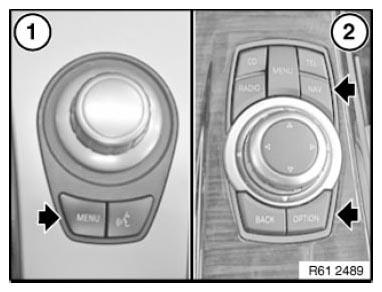

Before 10/2009 : Controller (1) has buttons on bottom only .

After 10/2009 : Controller (2) has buttons top and bottom .

Fig 1: Locating Front Controller Buttons

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: These repair instructions describe the removal and installation (replacement) of controller (2)!

IMPORTANT: Risk of damage!
The button for the controller must not be removed!

Necessary preliminary tasks

Remove CENTRE CONSOLE COVER

IMPORTANT: Risk of damage!

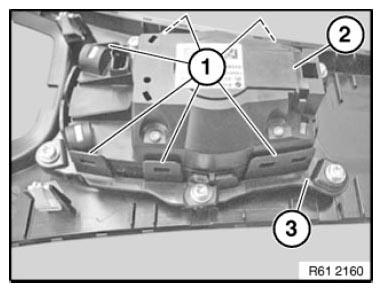

Carefully raise catches (1) on controller holder (3) and remove controller (2) towards top.

Installation note:

Make sure controller (2) is correctly engaged in controller holder (3).

Fig 2: Identifying Catches, Controller Holder And Controller

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
