61 31 193 Removing and installing/replacing button unit (menu/voice input)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove CENTRE CONSOLE TRIM .

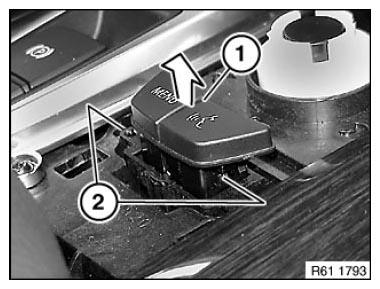

Unlock catches (2) and feed button unit (1) in direction of arrow out of controller.

Fig 1: Unlocking Catches And Button Unit Out Of Controller

Courtesy of BMW OF NORTH AMERICA, INC.

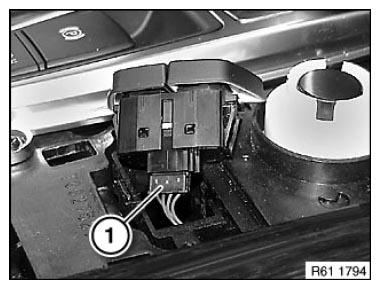

Disconnect plug connection (1) and remove button unit.

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
