61 31 133 Removing and installing/replacing AV connection socket

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323 .

Necessary preliminary tasks

Open storage compartment

Use special tool 00 9 323 to release retaining tabs (2) and remove trim (1) from storage compartment.

Disconnect associated plug connections and remove cover (1).

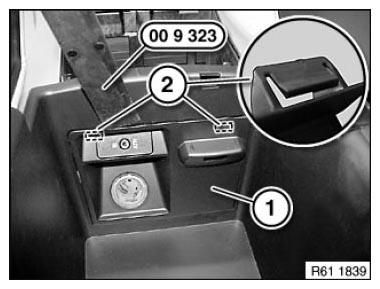

Fig 1: Releasing Retaining Tabs Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining tabs (1) and feed out AV connection socket (2) to front side of trim (3).

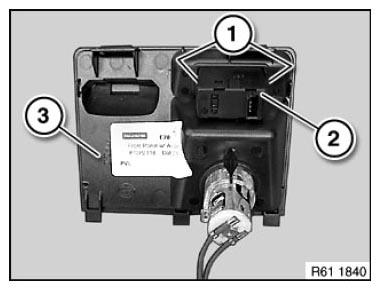

Fig 2: Identifying Retaining Tabs, AV Connection Socket And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
