61 31 118 Removing and installing/replacing power window switch (front passenger side)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Carry out the following operation carefully so as to avoid damaging the door trim panel and switch.
If necessary, tape off working area.

Lever power window switch (1) with special tool 00 9 317 in direction of arrow out of armrest.

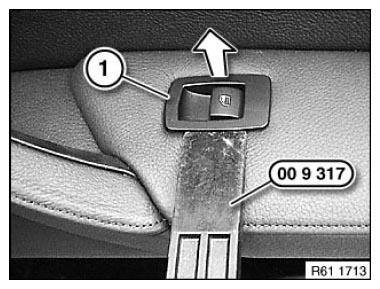

Fig 1: Removing Power Window Switch With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect associated plug connection and remove power window switch (1).

Installation note:

Retaining hooks (1) of power window switch (2) must not be damaged.

Make sure power window switch (2) is correctly seated in armrest.

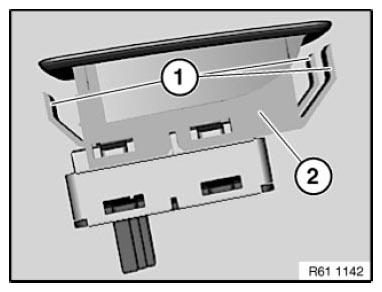

Fig 2: Identifying Retaining Hooks And Power Window Switch

Courtesy of BMW OF NORTH AMERICA, INC.
