61 31 117 Removing and installing/replacing power window switch (driver's side)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Carry out the following operation carefully so as to avoid damaging the door trim panel and switch.
If necessary, tape off working area.

Lever power window switch (1) with special tool 00 9 317 in direction of arrow out of armrest.

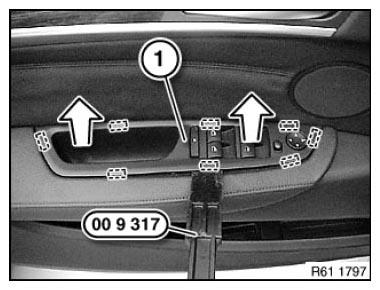

Fig 1: Pulling Power Window Switch With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure power window switch (1) is correctly engaged in armrest.

Disconnect plug connection (1) and remove power window switch.

Installation note:

Make sure clamps (2) are correctly seated on power window switch.

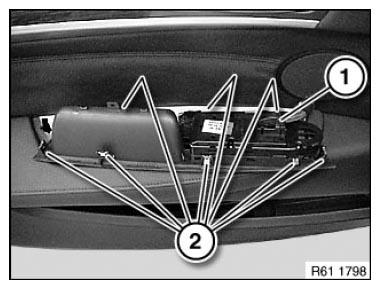

Fig 2: Identifying Plug Connection And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
