61 31 116 Replacing rocker switch for side window operation (rear)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Carry out the following operation carefully so as to avoid damaging the door trim panel and switch.
If necessary, tape off working area.

Lever rocker switch for side window operation (1) with special tool 00 9 317 in direction of arrow out of armrest.

Disconnect associated plug connection and remove rocker switch for side window operation (1).

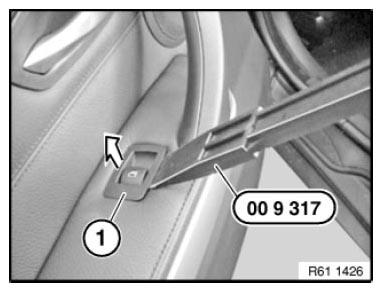

Fig 1: Pulling Rocker Switch For Side Window Operation With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hooks (1) of rocker switch for side window operation (2) must not be damaged.

Make sure rocker switch for side window operation (2) is correctly seated in armrest.

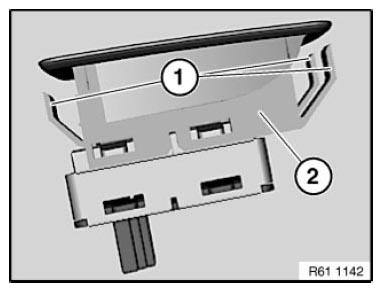

Fig 2: Identifying Retaining Hooks And Power Window Switch

Courtesy of BMW OF NORTH AMERICA, INC.
