61 31 037 Removing and installing/replacing light control unit

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove LEFT FRESH-AIR GRILLE .

Press out light control unit (1) from inside.

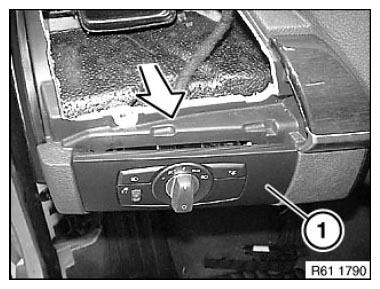

Fig 1: Pressing Out Light Control Unit From Inside

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove light control unit.

Installation:

Make sure retainers (2) are correctly seated on trim of light control unit.

If necessary, replace faulty retainers.

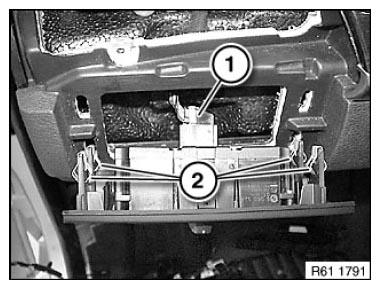

Fig 2: Identifying Plug Connection And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Release screws (1).

Remove light control unit (2) from trim (3).

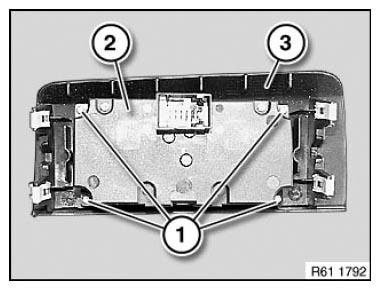

Fig 3: Identifying Light Control Unit, Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
