52 26... Removing and installing/replacing left or right LOCK microswitch

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR SEAT .

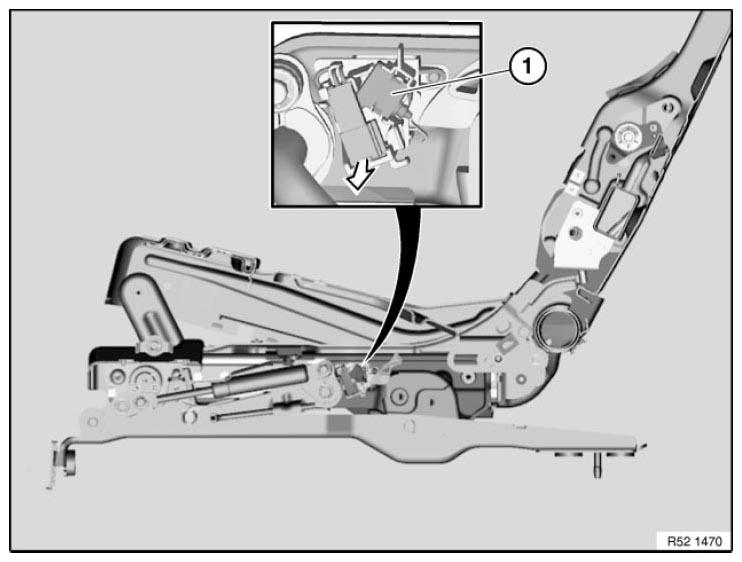

Fig 1: Uncliping Left Or Right Microswitch From Seat Backrest Frame
Courtesy of BMW OF NORTH AMERICA, INC.

Unclip left or right microswitch (1) from seat backrest frame.

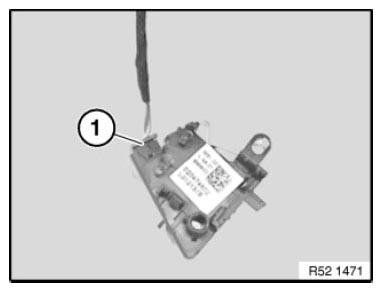

Unfasten plug connection (1) and disconnect.

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
