61 13... Rear repair wiring harness

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Repair wiring harness represents the highest vehicle specification. Secure cables that are not needed to avoid noises.
Read and comply with notes on HANDLING WIRING HARNESSES and cables.

Installation note:

Use suitable TOOL FOR REPAIR WIRING HARNESS .

Necessary preliminary tasks:

Remove SHOULDER IN LUGGAGE COMPARTMENT, RIGHT .
Remove TRIM FOR REAR LID .

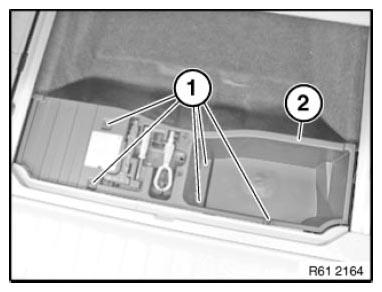

Release screws (1).

Remove battery cover (2).

Fig 1: Identifying Battery Cover And Screws

G08530399

Courtesy of BMW OF NORTH AMERICA, INC.

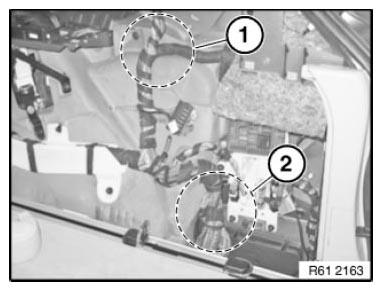

Carry out wiring harness repair in area (1) according to wiring diagram.

If required, for reversing camera carry out wiring harness repair of shielded wiring in area (2) according to wiring diagram.

Fig 2: Identifying Wiring Harness Repair Area

G08530400

Courtesy of BMW OF NORTH AMERICA, INC.

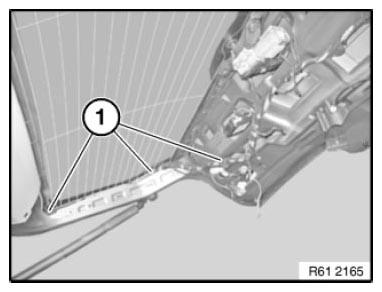

Route repair wiring harness (1) on tailgate and connect plug connections.

Installation note:

Make sure repair wiring harness (1) is routed without possibility of abrasions.

Fig 3: Identifying Repair Wiring Harness On Tailgate

G08530401

Courtesy of BMW OF NORTH AMERICA, INC.

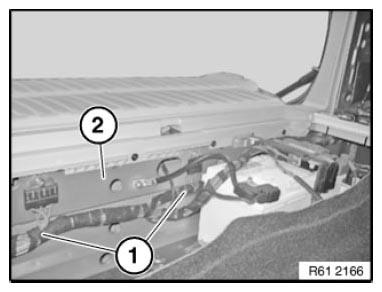

Lay repair wiring harness (1) on rear plate (2).

Installation note:

Make sure repair wiring harness (1) is routed without possibility of abrasions.

Fig 4: Identifying Repair Wiring Harness And Rear Plate

G08530402

Courtesy of BMW OF NORTH AMERICA, INC.

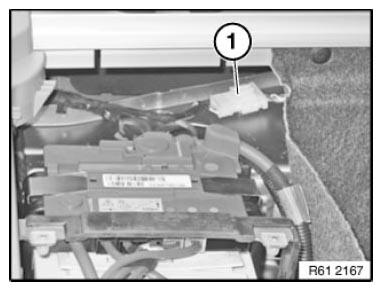

If require, repair plug connection (1) according to wiring diagram.

Fig 5: Identifying Plug Connection

G08530403

Courtesy of BMW OF NORTH AMERICA, INC.
