61 13... Cutting off, stripping insulation and cutting optical fibres to length: Notes

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 4 320

To cut off, strip insulation and cut optical fibres to length, use hand pliers 61 4 321 (1) in conjunction with crimping head 61 4 322 (2) 61 4 320 from crimping set.

NOTE: Hand pliers (1) open automatically until limit position when handles are pressed together.

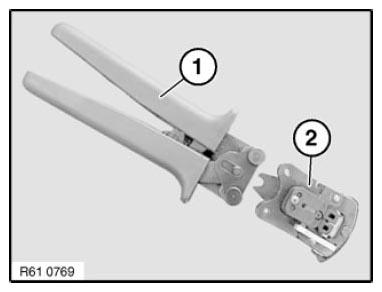

Fig 1: Identifying Hand Pliers (61 4 321) And Crimping Head (61 4 322)

Courtesy of BMW OF NORTH AMERICA, INC.
