61 35 115 Removing and installing/replacing footwell module

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks

Clamp off BATTERY NEGATIVE LEAD .
Only disconnect E72: both battery earth cables.
Remove FOOTWELL SIDE TRIM PANEL ON A-PILLAR, LEFT .

Fold back carpet (1) in area of A-pillar a little.

Disconnect plug connection (2).

Release plastic nuts (3).

Pull footwell module (4) forwards a little.

Disconnect plug connection (5).

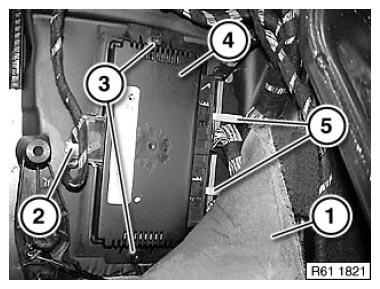

Fig 1: Identifying Back Carpet, Plastic Nuts, Footwell Module And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out PROGRAMMING/ENCODING .
