61 35 107 Removing and installing or replacing junction box electronics

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

Clamp off BATTERY NEGATIVE LEAD .
E72 Only: Disconnect Both negative battery cables.
Remove TRIM FOR INSTRUMENT PANEL AT BOTTOM RIGHT .

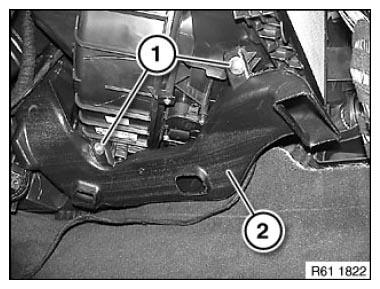

Release screws (1).

Remove air duct (2).

Fig 1: Identifying Air Duct And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

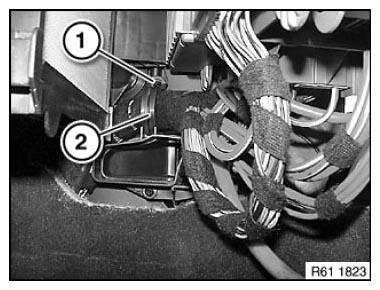

Release screw (1).

Slacken wiring harness in cable holder (2).

Fig 2: Identifying Cable Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

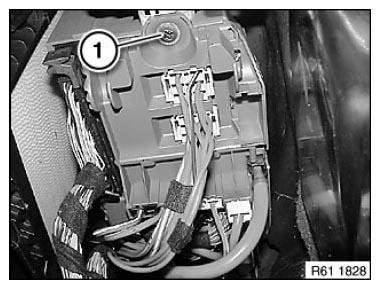

Release screw (1).

Fig 3: Identifying Passenger Compartment Fuse Box Screw

Courtesy of BMW OF NORTH AMERICA, INC.

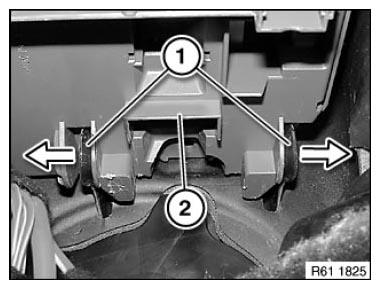

Lever holders (1) at bulkhead out of passenger compartment fuse box (2) in direction of arrow.

Lower passenger compartment fuse box (2).

Fig 4: Pushing Lever Holders At Bulkhead Out Of Fuse Box

Courtesy of BMW OF NORTH AMERICA, INC.

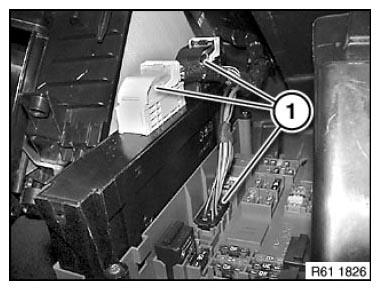

Disconnect plug connection (1).

Fig 5: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

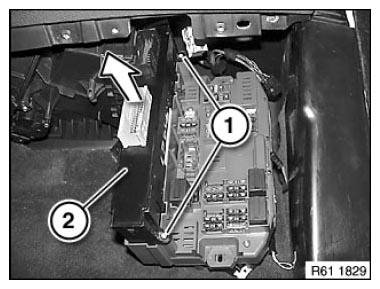

Release screws (1).

Pull junction box electronics (2) in direction of arrow out of passenger compartment fuse box.

Disconnect associated plug connection and remove junction box electronics (2).

Installation:

Make sure junction box electronics (2) is correctly seated in passenger compartment fuse box.

Fig 6: Pulling Junction Box Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
