61 35 001 Removing and installing trailer module

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

Remove FLAP IN RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

E70:

Lift back insulating mat.

Disconnect plug connection (1).

Unlock catch (2) and remove trailer module (3) from device carrier (4).

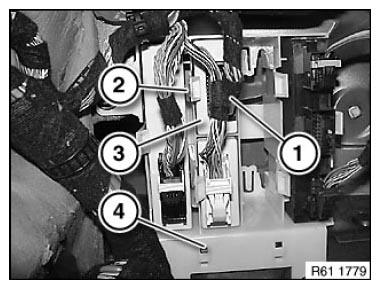

Fig 1: Identifying Plug Connection, Catch, Trailer Module And Device Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
