61 11... Installing repair cable for right Side View camera

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with notes on HANDLING WIRING HARNESSES AND WIRING .

NOTE: Work is shown on the E70 by way of example. There may be differences in detail in the case of other vehicle types and equipment specifications.

Necessary preliminary tasks:

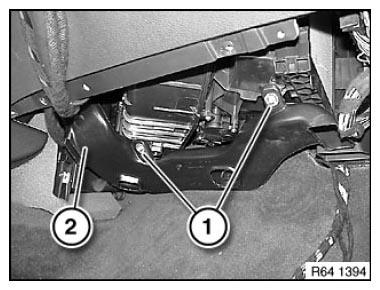

Release screws (1) and remove air duct (2).

Fig 1: Identifying Air Duct And Screws
G08530266Courtesy of BMW OF NORTH AMERICA, INC.

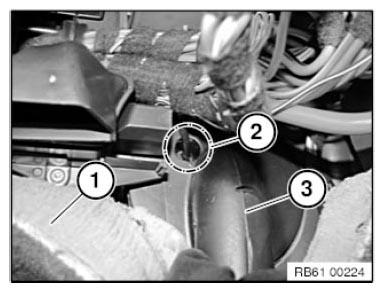

Carefully pull carpet (1) in passenger footwell downward. Break through opening (2) in rubber grommet (3) using a suitable tool.

Fig 2: Identifying Carpet And Rubber Grommet
G08530267Courtesy of BMW OF NORTH AMERICA, INC.

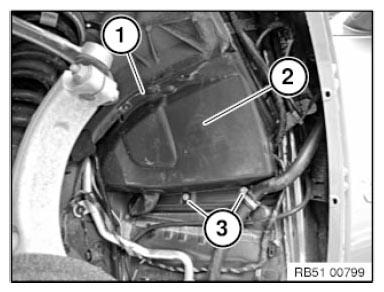

Undo clip (1) and screws (3). Remove cover (2).

Fig 3: Identifying Clip, Screws And Cover
G08530268Courtesy of BMW OF NORTH AMERICA, INC.

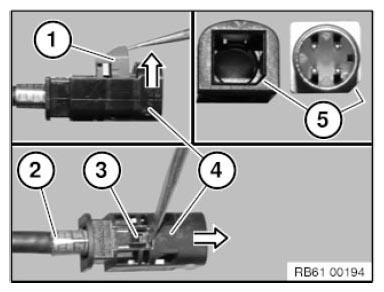

Unlock the lock (1) in direction of arrow with suitable tool.

IMPORTANT: Risk of damage!

Unlock the lock (3) carefully  with a suitable tool. Pull connector housing (4) of line (2) in direction of arrow.

Installation note:

Pay attention to encoding (5)!

Fig 4: Pulling Connector Housing Of Line
G08530269Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Laying Repair Cable Behind Support Along Wiring Harness
G08530270Courtesy of BMW OF NORTH AMERICA, INC.

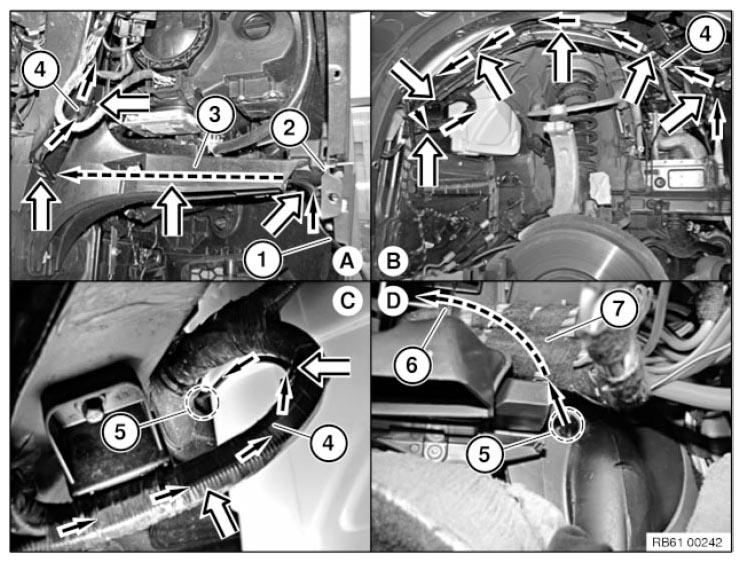

NOTE: Repair cable (1) is laid from Side View camera (2) along wiring harness (4) in the wheel arch in the passenger footwell under the heating and air-conditioning unit to the all-round vision camera control unit in the driver's footwell.
Leave approx. 10 cm overlength in the area of Side View camera (2).

Connect repair cable (1) to Side View camera (2).

Lay repair cable (1) in direction of arrow behind support (3) along wiring harness (4) and secure to points marked with an arrow (picture A, B, C).

Feed though repair cable (1) at point (5) in passenger footwell and lay under wiring harness (7) and wiring harness mounting (6) (picture C, D).

IMPORTANT: To prevent moisture from entering the passenger compartment, seal opening (5) on the outside, using suitable means!

Carefully pull carpet (1) downward. Lay repair cable (2) in direction of arrow under wiring harness (3) and secure at a point marked with an arrow.

Fig 6: Laying Repair Cable In Under Wiring Harness
G08530271Courtesy of BMW OF NORTH AMERICA, INC.

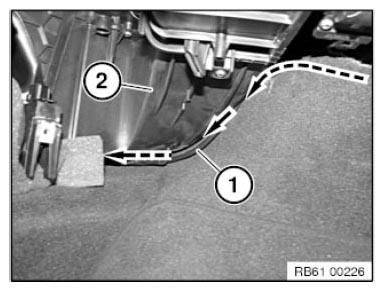

Feed through repair cable (1) under heating and air-conditioning unit (2) from passenger footwell into driver's footwell.

Fig 7: Identifying Repair Cable, Under Heating And Air-Conditioning Unit
G08530272Courtesy of BMW OF NORTH AMERICA, INC.

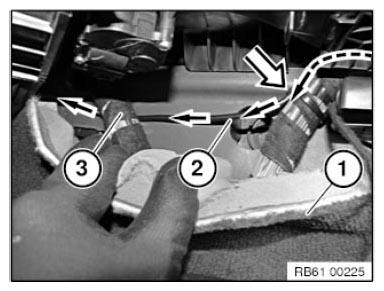

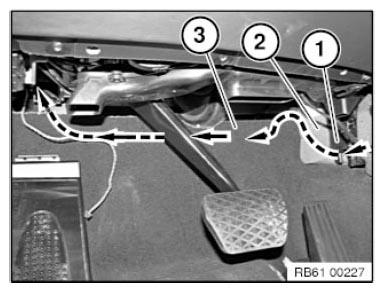

Lay repair cable in direction of arrow under heating and air-conditioning unit (1), foam material (2) and carpet (3).

Fig 8: Laying Repair Cable In Under Heating Or Air-Conditioning Unit, Foam Material And Carpet
G08530273Courtesy of BMW OF NORTH AMERICA, INC.

Lay repair cable in direction of arrow and secure at a point marked with an arrow.

Assemble repair cable.

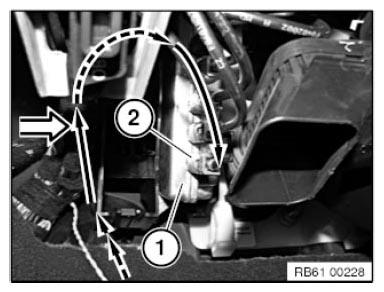

Connect repair cable to connector (2) of all-round vision camera control unit (1) (bottom slot).

NOTE: Lay any repair cable overlength under carpet.
Fig 9: Laying Repair Cable
G08530274Courtesy of BMW OF NORTH AMERICA, INC.

After successful completion of function check  , detach start and end of faulty cable  at first mounting point.
