32 41... Notes on hydraulic line with quick-connect coupling

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Quick-connect coupling with ID marking

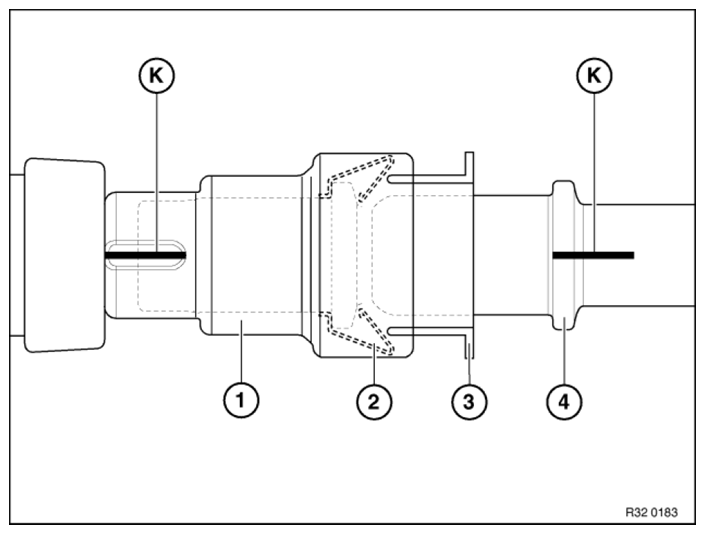

Fig 1: Identifying Quick-Connect Coupling With ID Marking
Courtesy of BMW OF NORTH AMERICA, INC.

Removing

Push quick-connect coupling (1) against pipe (4) (thereby relieving strain on spring (2)).

Press plastic ring (3) into quick-connect coupling (1) and remove coupling (1).

Assembly

Markings (K) on coupling (1) and pipe (4) must be flush.

Push quick-connect coupling (1) onto pipe (4) until a "click" can clearly be heard.

To check that quick-connect coupling (1) has been installed correctly, pull it back forcefully.

2) Quick-connect coupling with indication pins

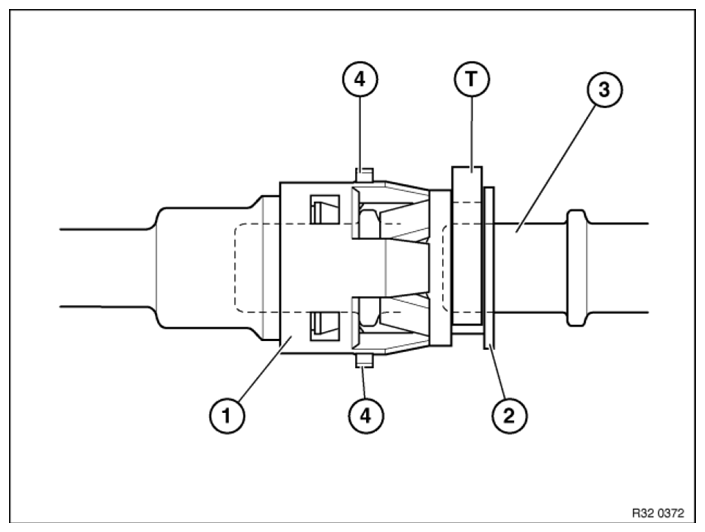

Fig 2: Identifying Quick-Connect Coupling With Indication Pins
Courtesy of BMW OF NORTH AMERICA, INC.

Removing

Press plastic ring (2) into quick-connect coupling (1) and remove coupling (1).

Assembly

When replacing hydraulic line: remove transportation lock (T).

Push quick-connect coupling (1) onto pipe (3) until both indication pins (4) can be seen and felt to point outwards at outside diameter of housing.

To check that quick-connect coupling (1) has been correctly fitted, feel indication pins (4) at outside diameter of housing. When correctly seated, indication pins (4) cannot be pressed into housing.

IMPORTANT: Coupling is not correctly engaged if both indication pins (4) fail to protrude from housing. Leakage is thus unavoidable.
