32 11... Notes on checking steering backlash on vehicles with rack-and pinion steering (with front axle raised)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When the front axle is raised, the applied force is distributed via the tie rod into horizontal and vertical forces. If there is now no electric or hydraulic assistance, the forces created cause the thrust member (1) to be unloaded against the spring (2). The play created in this way is incorrectly referred to as steering backlash.
  1. 3 = Rack

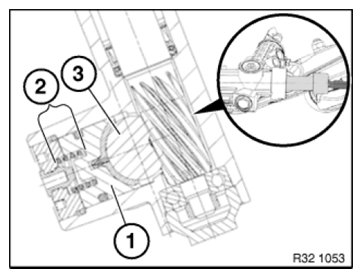

    Fig 1: Identifying Thrust Member, Spring And Rack
    G08527779Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Target status: steering must be free from play in all the mechanical components (except for steering gear and tie rod)!
NOTE: For checking purposes, the steering gear must be pressurised by means of electric or hydraulic assistance.
