00-9140 Torque angle measuring dial

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

0495605 009140 Torque angle measuring dial MW

NOTE: (Torsion angle gauge 3/4" connection) For torsion angle adjustment of the central bolt up to 600 Nm. [Released]

Storage Location

B19

A19

SI number

01 20 06 (299)

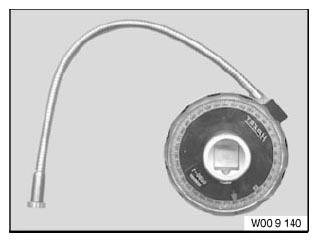

Fig 1: Identifying Torque Angle Measuring Dial (0495605)

Courtesy of BMW OF NORTH AMERICA, INC.
