00-2550 Measurement aid

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

0490189 002550 Measurement aid MW

NOTE: (Depth gauge) E.g. for determining side clearance of transmission shaft and basic adjustment dimension for installing bevel pinion in rear axle differential [released]

Storage Location

B5

A5

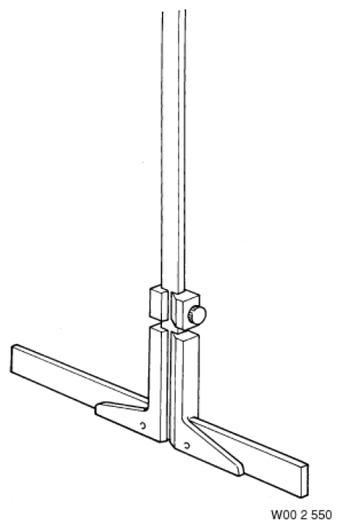

Fig 1: Identifying Measurement Aid (0490189)
G06965535Courtesy of BMW OF NORTH AMERICA, INC.
