00-1490 Assembly stand

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

0490118 001490 Assembly stand MW

Replaced by: 0495187

NOTE: For accommodating engine, transmission and rear axle, replaced by 00 1 450 (passenger car) Release for motorcycle only! Replaced by 00 2 300 (0 495 187) [replaced]

Consisting of:

= 0490119 Frame
NOTE: (tube frame) Release for motorcycle only! [Discontinued]
= 0490120 Fixture
NOTE: (Mount head without mount flange) [discontinued]
= 0490121 Fixture
NOTE: (mount flange (2 pieces required)) Release for motorcycle only! [Discontinued]

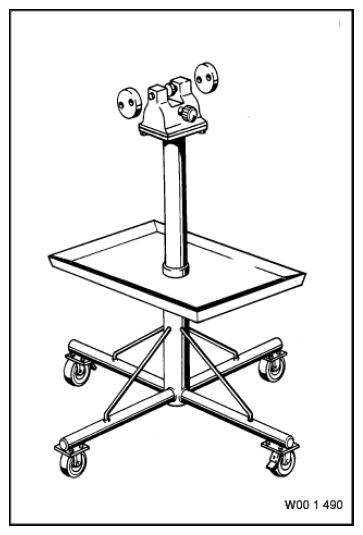

Fig 1: Identifying Assembly Stand (0490118)
Courtesy of BMW OF NORTH AMERICA, INC.
= 0490122 Fuse
NOTE: [Discontinued]
= 0490123 Fitting aid
NOTE: (Stop of mount flange) [discontinued]
= 0490124 Lever
NOTE: (Release lever) [discontinued]
= 0490125 Wheel
NOTE: (wheel without brake) Release for motorcycle only! [Discontinued]
= 0490126 Wheel
NOTE: (wheel with brake) Release for motorcycle only! [Discontinued]
= 0490127 oddments tray
NOTE: (Storage panel) [discontinued]
