61 35 954 Removing and installing/replacing interior antenna for comfort access system (rear center console)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR CENTRE CONSOLE TRIM .

Disconnect plug connection (1).

Release screw (2) and remove interior aerial for comfort access system (3).

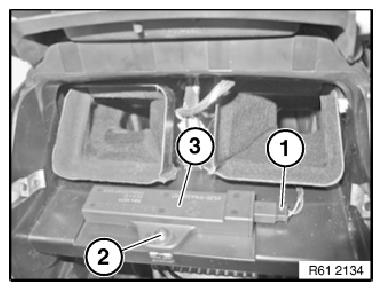

Fig 1: Identifying Comfort Access System Interior Aerial, Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
