61 11... Installing repair cable for reversing camera

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .

NOTE: Work is shown by way of example. There may be differences in detail in the case of other vehicle types and equipment specifications.

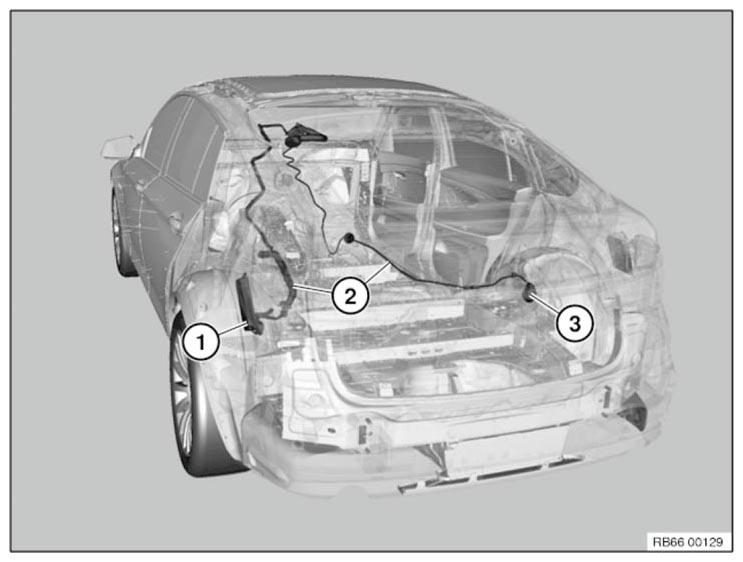

Fig 1: Identifying TRSVC Control Unit, Camera And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim panels.

Lay repair cable from reversing camera (3) along wiring harness (2) up to TRSVC control unit (1, middle slot) and secure sufficiently.

After successful completion of function check , detach start and end of faulty cable at first mounting point.
