61 61... Checking contact angle of windscreen wiper on left or right
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Correctly adjusting the contact angle of the wiper arms is crucial to determining wiping quality.

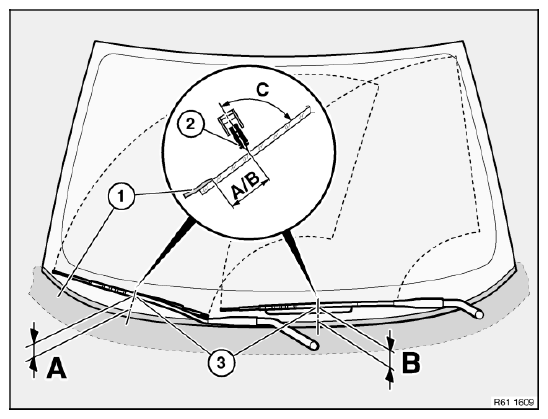

A/B = Distance between wiper blade (2) and trim panel on cowl panel (1)
NOTE:
Measurement is taken at the height of the locators (3) for the windscreen wiper arms
C= Contact angle between wiper blade center plane and windscreen
When using special tool 61 6 100 , check the scale value according to the following table.
For RHD vehicles, change the preceding sign of the scale values.
- LHD vehicles, scale range 0 to -5
- RHD vehicles, scale range 0 to +5
| Model | Contact angle (C) on windscreen wiper arm | Scale value (LHD) on special tool | Setting dimension (A, B) on windscreen wiper arm | ||||
|---|---|---|---|---|---|---|---|
| Front passenger side | Driver side | Front passenger side | Driver side | Front passenger side | Driver side | ||
| F01/F02/F03 F04/ | 85.0 ° +3.0°-3.0° | 85.0 ° +3.0°- 3.0° | -5 +3, 0-3, 0 | -5 +3, 0-3, 0 | 60±3 mm | 70 ±3 mm | |
| F07 | 85.0 ° +3.0°-3.0° | 85.0 ° +3.0°-3.0° | -5 +3, 0-3, 0 | -5 +3, 0-3, 0 | 67±3 mm | 80±3 mm | |
| F10/F11/F18 | 85.0 ° +3.0°-3.0° | 85.0 ° +3.0°-3.0° | -5 +3, 0-3, 0 | -5 +3, 0-3, 0 | 60±3 mm | 65 ±3 mm | |
| F06/F12/F13 | 85.0 ° +3.0°-3.0 | 85.0 ° +3.0°-3.0 | -5 +3, 0-3, 0 | -5 +3, 0-3, 0 | 82±3 mm | 88±3 mm | |
