63 21... Removing and installing/replacing trim for rear light on left or right
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove LEFT REAR LIGHT .

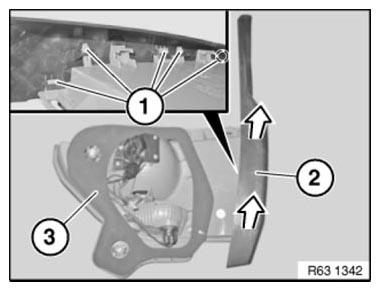

Carefully unclip retaining lugs (1).
Remove trim (2) from rear light (3) in direction of arrow.
Installation:
- Retaining lugs (1) must not be damaged
- Ensure trim (2) is seated correctly.
