61 31 544 Replacing roof switch cluster (roof function center)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Only new parts may be used for replacement (repair kit)*.

*Sourcing reference: BMW Parts Catalogue

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary work

Remove ROOF SWITCH CLUSTER .

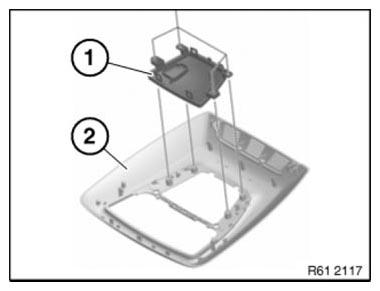

Secure switch unit (1) to cover (2).

Fig 1: Identifying Switch Unit And Cover

G06895067

Courtesy of BMW OF NORTH AMERICA, INC.

Clip light unit (1) into cover (2).

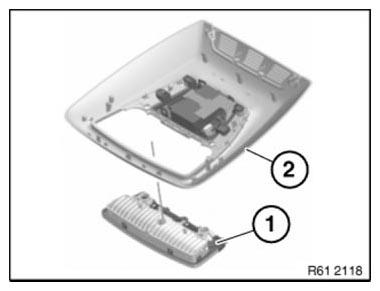

Fig 2: Identifying Light Unit With Cover

G08422527

Courtesy of BMW OF NORTH AMERICA, INC.

Insert retaining lugs on switching mat (1) correctly into designated guides on board (2).

Connect USIS sensor plug connections (3) to board (2).

NOTE: USIS sensors (3) are used only when anti-theft alarm system is fitted.

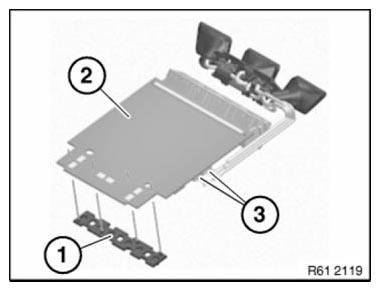

Fig 3: Identifying Switching Mat, USIS Sensor Plug Connections And Board

G08422528

Courtesy of BMW OF NORTH AMERICA, INC.

Insert USIS sensors (1) in direction of arrow into frame (2).

NOTE: USIS sensors (1) are used only when anti-theft alarm system is fitted.

Fig 4: Inserting USIS Sensors Into Frame

G08422529

Courtesy of BMW OF NORTH AMERICA, INC.

Clip frame (1) into cover (2).

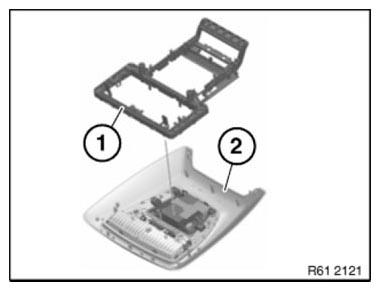

Fig 5: Identifying Frame With Cover

G08422530

Courtesy of BMW OF NORTH AMERICA, INC.

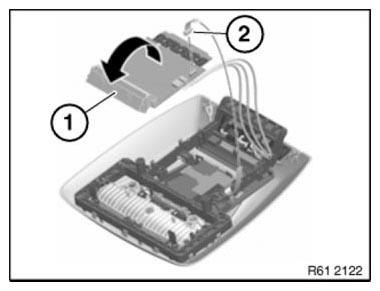

Turn board (1) over in direction of arrow and connect plug connection (2) to board (1).

Fig 6: Turning Board

G08422531

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 08/2009:

Rotate PCB (1) in direction of arrow.

Wind cable (2) in direction of arrow and connect with PCB (1).

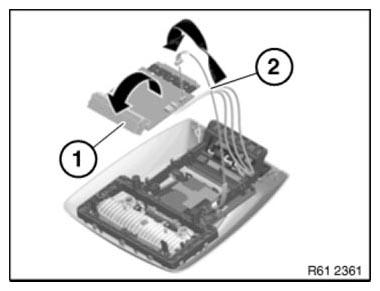

Fig 7: Rotating PCB

G08422532

Courtesy of BMW OF NORTH AMERICA, INC.

Clip board (1) onto frame (2).

Installation note:

Make sure guide (3) is correctly seated in frame (2).

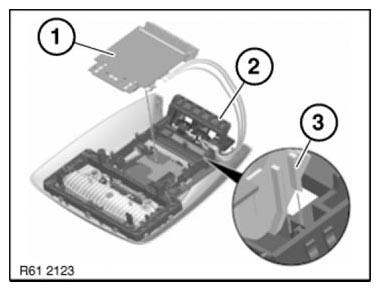

Fig 8: Identifying Board On Frame And Guide

G08422533

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If anti-theft alarm system is fitted, make sure USIS sensor lead (1) is correctly seated in retaining tabs (2) on frame (3).

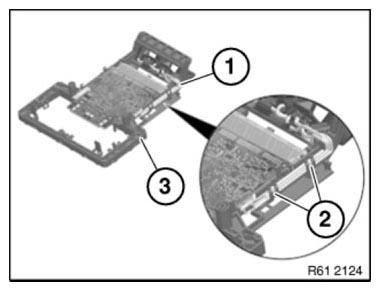

Fig 9: Identifying USIS Sensor Lead And Retaining Tabs On Frame

G08422534

Courtesy of BMW OF NORTH AMERICA, INC.

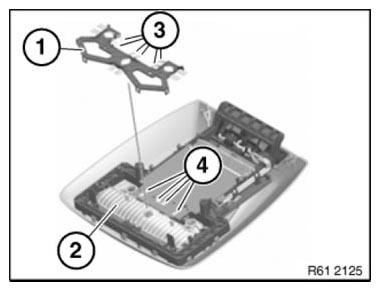

Clip light pressed screen (1) into light unit (2).

Installation note:

Make sure pin (3) is correctly seated on board (4).

Fig 10: Identifying Light Pressed Screen On Light Unit And Pins On Board

G08422535

Courtesy of BMW OF NORTH AMERICA, INC.

Install bulbs (1) in light pressed screen (2).

Installation note:

Note bulb type.

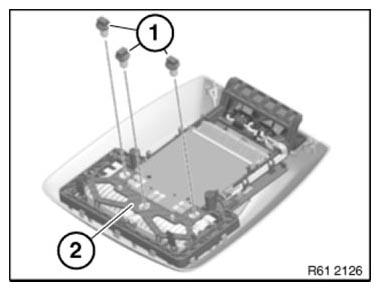

Fig 11: Identifying Bulbs And Light Pressed Screen

G08422536

Courtesy of BMW OF NORTH AMERICA, INC.

Screw down base (1) to roof switch cluster (2).

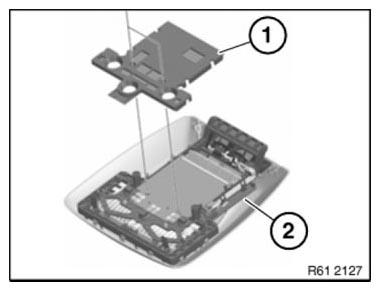

Fig 12: Identifying Roof Switch Cluster With Base

G08422537

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out VEHICLE PROGRAMMING/ENCODING .
