61 31 539 Replacing operating element for driver assistance system

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove OPERATING ELEMENT FOR ASSIST SYSTEM .

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

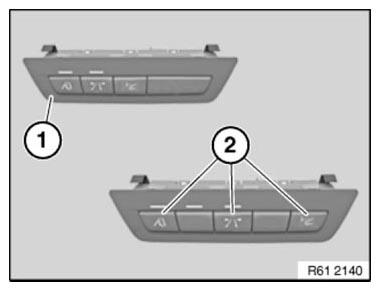

The function keys (2) on the replacement may differ from those on the originally installed operating element (1).

Fig 1: Identifying Function Keys On Operating Element

Courtesy of BMW OF NORTH AMERICA, INC.

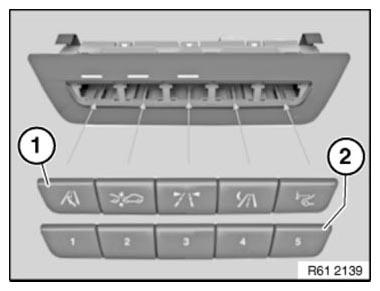

Picture shows function key (1) for full equipment specification.

Assign function keys (1) according to respective equipment specification.

Blind caps (2) are marked on the back with the corresponding position numbers.

Fig 2: Identifying Function Keys And Blind Caps

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The function keys (1) and blind caps (2) must be clipped onto the correct positions otherwise correct operation is not guaranteed and the operating element may be damaged.

Carry out VEHICLE PROGRAMMING/CODING .
