61 31 195 Removing and installing (replacing) front controller

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!
The button for the controller must not be removed!

Necessary preliminary work

Remove CENTRE CONSOLE TRIM .

Release screws (1).

Tightening torque 61 31 2AZ .

Remove controller (2) from center console cover (3).

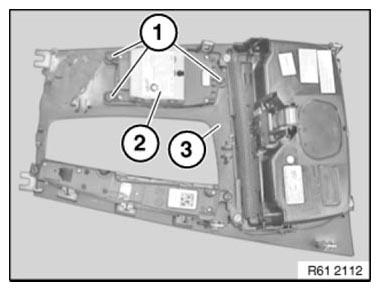

Fig 1: Identifying Front Controller With Screws And Centre Console Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
