61 31 117 Removing and installing/replacing power window switch (driver's side)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT DOOR TRIM PANEL, LEFT .

Release screw (2).

Tightening torque 51 41 2AZ .

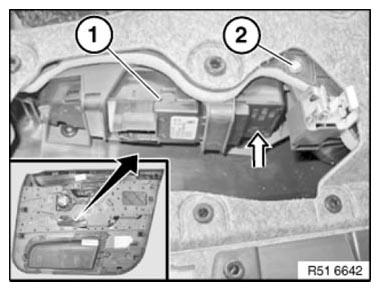

Press power window switch (1) upwards in direction of arrow and remove.

Fig 1: Pressing Power Window Switch Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

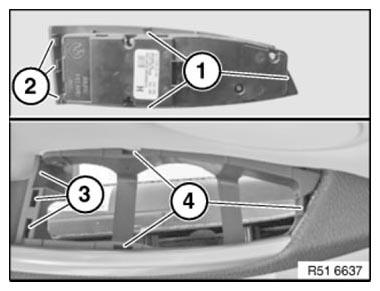

Hook journals (1) into position (4). Lock retaining lugs (2) in bushes (3).

Fig 2: Identifying Retaining Lugs, Bushes And Journals

Courtesy of BMW OF NORTH AMERICA, INC.
