51 41... Punching in the contour for the seat memory switch

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks

Remove REAR DOOR TRIM PANEL

Use special tool 51 4 109 to punch in holes in marked locations on door panel (1).

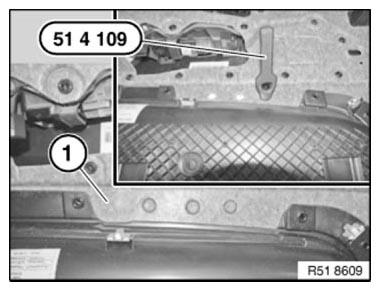

Fig 1: Punching Holes On Door Panel Marked Locations Using Special Tool (51 4 109)

G08422459

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Special tools 51 4 114 and 51 4 115 must be used as cutting implements for punching work on the F07

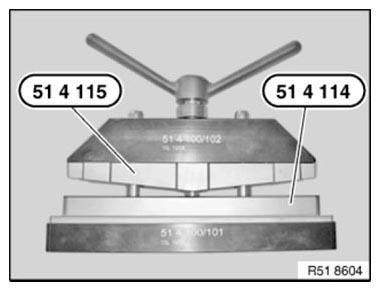

Fig 2: Identifying Special Tools (51 4 114) And (51 4 115)

G08422460

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: If cutting tool (2) is changed, proceed with the punching tool (1) closed and while using special tool 51 4 112 (risk of damage).

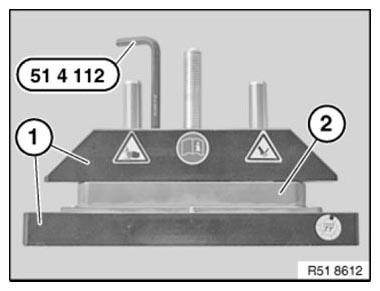

Fig 3: Securing Cutting Implements To Punching Tool Using Special Tool (51 4 112)

G08422455

Courtesy of BMW OF NORTH AMERICA, INC.

51 4 101 Slide special tool through holes stamped into door trim panel (1).

NOTE: Guide pins of punching tool are coded.
Distortion is thus not possible.

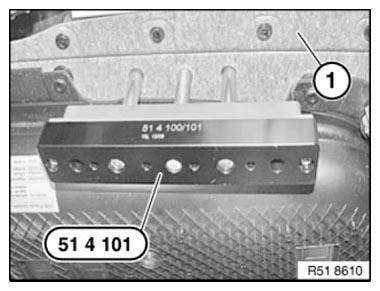

Fig 4: Sliding Special Tool (51 4 101) Into Door Trim Panel

G08422462

Courtesy of BMW OF NORTH AMERICA, INC.

51 4 105 Mount special tools and on punching tool 51 4 106 (1).

Compress punching tool (1) via spindle.

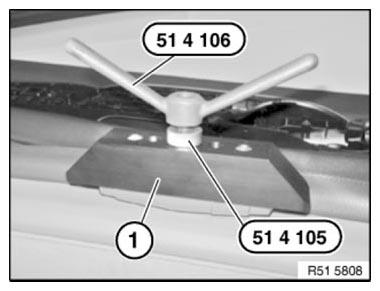

Fig 5: Compressing Punching Tool

G08422457

Courtesy of BMW OF NORTH AMERICA, INC.

51 4 111 Press punching remnants with special tool from rear out of punching tool.

NOTE: This work step is necessary to prevent the cutting surfaces from being damaged during a renewed punching operation.

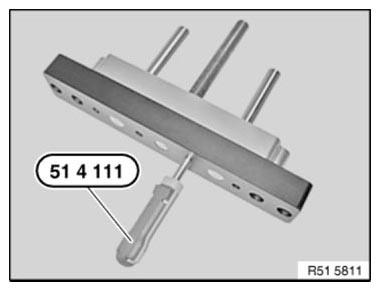

Fig 6: Pressing Punching Remnants Using Special Tool (51 4 111)

G08422458

Courtesy of BMW OF NORTH AMERICA, INC.
