61 34... Removing and installing or replacing socket outlet in luggage compartment

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Lift handle (1) from 12V connection socket receptacle and fold luggage compartment lid (2) toward inside.

Disconnect plug connection behind.

Fig 1: Identifying Luggage Compartment Lid And Socket Receptacle Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catches (1) with a suitable tool and press socket receptacle (2) in direction of arrow out of socket frame (3).

Installation:

Catches (1) on socket receptacle (2) must not be damaged.

Make sure socket receptacle (2) is correctly seated in socket frame (3).

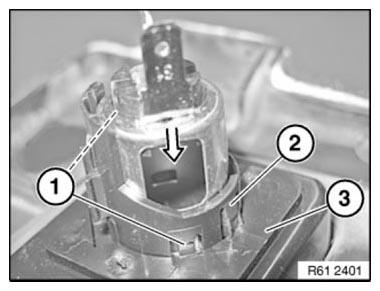

Fig 2: Installing Socket Receptacle Into Socket Frame

Courtesy of BMW OF NORTH AMERICA, INC.
