66 53 170 Removing and installing/replacing control unit for Top-/Rear-/Side-View Camera

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

Clamp off BATTERY NEGATIVE LEAD .
Remove SHOULDER TRIM PANEL, LEFT .

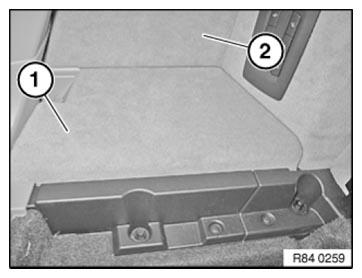

Remove lid of left luggage compartment trim panel (1).

Remove luggage compartment flap (2).

Fig 1: Identifying Luggage Compartment Trim Panel And Flap

G08422953

Courtesy of BMW OF NORTH AMERICA, INC.

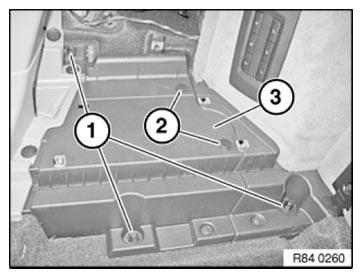

Unscrew nuts (1).

Lever out expanding rivet (2).

Remove left floor panel support (3).

Fig 2: Identifying Floor Panel Support, Expanding Rivet And Nuts

G08422954

Courtesy of BMW OF NORTH AMERICA, INC.

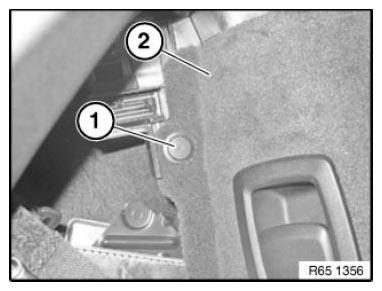

Lever out expanding rivet (1).

Carefully raise wheel arch trim panel (2) a little on left of luggage compartment.

Fig 3: Identifying Wheel Arch Trim Panel And Rivet

G08485372

Courtesy of BMW OF NORTH AMERICA, INC.

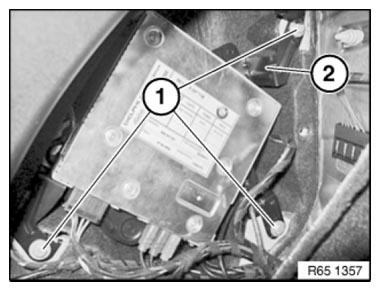

NOTE: TRSVC control unit is located on the rear side of holder!

Release screws (1).

Remove bracket (2).

Fig 4: Identifying TRSVC Control Unit Bracket And Screws

G08423001

Courtesy of BMW OF NORTH AMERICA, INC.

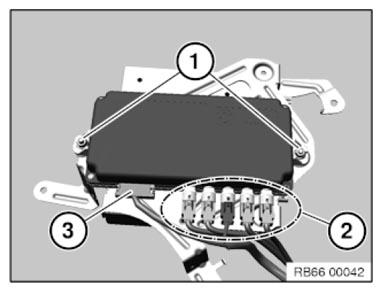

Unlock plug connections (2) and (3) and disconnect.

Unscrew nuts (1).

Remove TRSVC control unit.

Fig 5: Identifying TRSVC Control Unit Plug Connections And Nuts

G08423097

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .
CALIBRATE REVERSING CAMERA .
