61 35 688 Replacing solar rain/light sensor and condensation sensor

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

If necessary, remove INSIDE MIRROR .

For equipment specifications up to 09/2009:

with 2-zone automatic air conditioning (SA 534)
with 4-zone automatic climate control (SA 4 NB)
with Head-Up Display (SA 610)

From 09/2009 onward, considered standard equipment and thus not dependent on equipment specifications.

Disconnect plug connection (2).

Unlock metal spring (3) in direction of arrow.

Remove solar rain/light and condensation sensor (1) from windscreen.

Installation note:

Close plug connection (2) only after fitting solar rain/light and condensation sensor on windscreen!

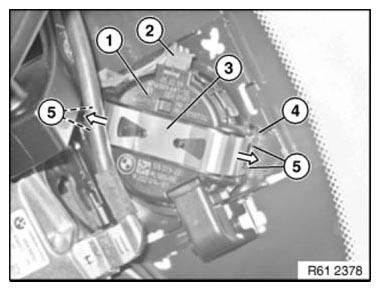

Fig 1: Unlocking Metal Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully clean windscreen in the contact area with the solar rain/light and condensation sensor! Remove all silicone residues.

Remove protective cover from the new solar rain/light and condensation sensor. The silicone-coated surface below it must not be touched!

Press center of metal spring (3) to ensure latch mechanism is correct in both hooks (5) on each side of retaining element (4).

NOTE:

Solar rain/light and condensation sensor is automatically coded via a terminal change (terminal 15) by junction box.
Carry out INITIALIZATION to calibrate the rain sensor to the windscreen.
