61 35 132 Removing and installing/replacing central gateway module
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .
Necessary preliminary tasks
- Disconnect BATTERY EARTH LEAD .
- Disconnect both negative battery cables at F03
- Remove trim panel for pedal mechanism . See 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (US ONLY) .

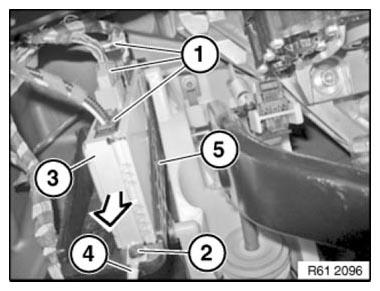

Disconnect plug connection (1).
NOTE:
Cable shoe (4) is currently no longer installed.
If installed, release screw (2) and remove cable shoe (4).
Tightening torque 61 35 3AZ .
Pull central gateway module (3) off equipment holder (5) in direction of arrow.
Installation note:
Make sure central gateway module (3) is correctly installed in equipment holder (5).
Replacement:
Carry out PROGRAMMING/ENCODING .
Perform FlexRay synchronization via path:
- Body
- Central Gateway Module
- Initialize FlexRay
