61 35 115 Removing and installing/replacing footwell module

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

Disconnect BATTERY NEGATIVE CABLE .
Detach both battery cables for negative terminal in F03.
Remove FOOTWELL SIDE TRIM PANEL ON A-PILLAR, LEFT .

Disconnect connector connections (1) and (3).

Release nuts (2) and remove footwell module (4).

Tightening torque 61 35 4AZ .

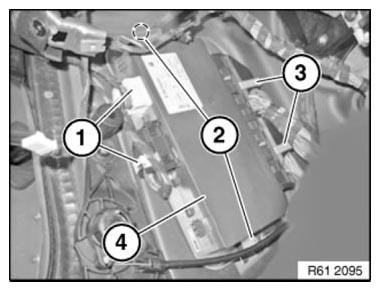

Fig 1: Identifying Footwell Module With Connector Connections And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
