61 35 001 Removing and installing (replacing) trailer module
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .
Necessary preliminary tasks
- Remove SPARE WHEEL WELL TRIM AT REAR .

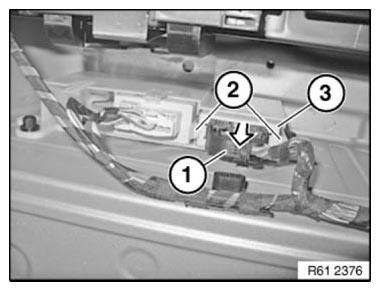

Unfasten plug connection (1) and disconnect.
Unlock equipment holder (2).
Pull out trailer module (3) upwards in direction of arrow.
Installation:
Ensure trailer module (3) is seated correctly.
Replacement:
Carry out VEHICLE PROGRAMMING/CODING .
