13 62 594 Removing and installing/replacing pressure sensor on right intake plenum (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Read out DME fault memory.
Switch off ignition.
Remove ELECTRONICS BOX.
Draw off A/C SYSTEM.
Secure ENGINE in installation position.

Release screw (1).

Tightening torque 64 53 3AZ .

Detach A/C line (2) and place to one side.

Replace sealing ring on A/C line.

Fig 1: Identifying A/C Line With Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and remove.

Release screws (2) with a reversible ratchet, extension, universal joint and a magnetic Torx socket.

Tightening torque 13 62 2AZ. .

Pull pressure sensor (3) out of left intake plenum.

Installation note:

Coat sealing ring with lubricant.

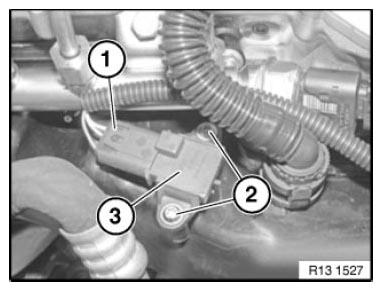

Fig 2: Identifying Pressure Sensor With Connector And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Delete fault memory.
