84 21 526 Removing and installing/replacing compensator
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Remove luggage compartment wheel arch trim on left. Refer to 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

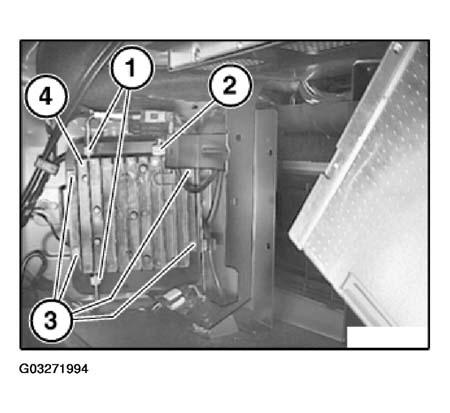

Release knurled nuts and disconnect antenna connector (1).
Unfasten plug connection (2) and disconnect.
Release screws (3) and remove compensator (4).
