Section 3109 (General Electrical System - Repair - E90)
>>
Control Units, Modules
>>
61 35... Overview of control units
61 35... Overview of control units
WARNING:
This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

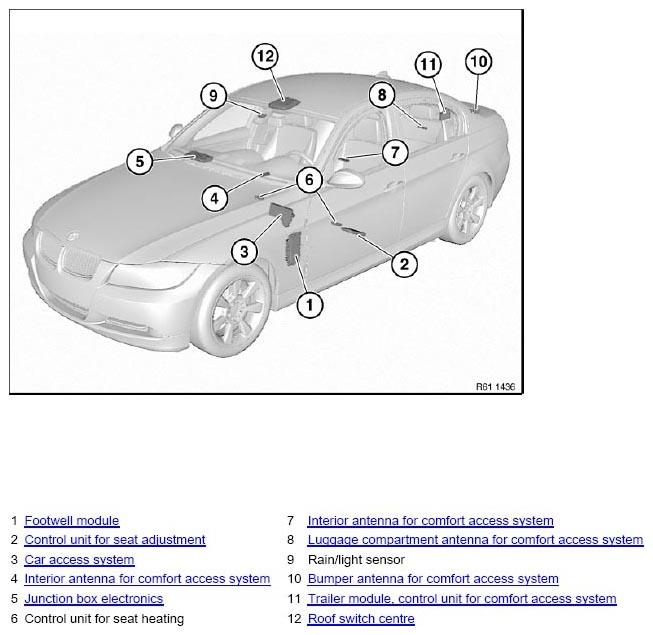

Fig 1: Overview Of Control Units
Courtesy of BMW OF NORTH AMERICA, INC.
