32 13 650 Removing and installing/replacing EH converter for Servotronic

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.

Necessary Preliminary Tasks:

Remove reinforcement plate.
If necessary, remove heat shield.

Disconnect plug connection (1).

Unfasten screws (2).

Remove EH converter (3).

Installation:

Replace O-ring.

Clean side return orifice with compressed air.

Align EH converter (3) to opening in power steering gear, press by hand into power steering gear up to stop, insert screws (2) and tighten down.

Tightening torque, (3 N.m.).

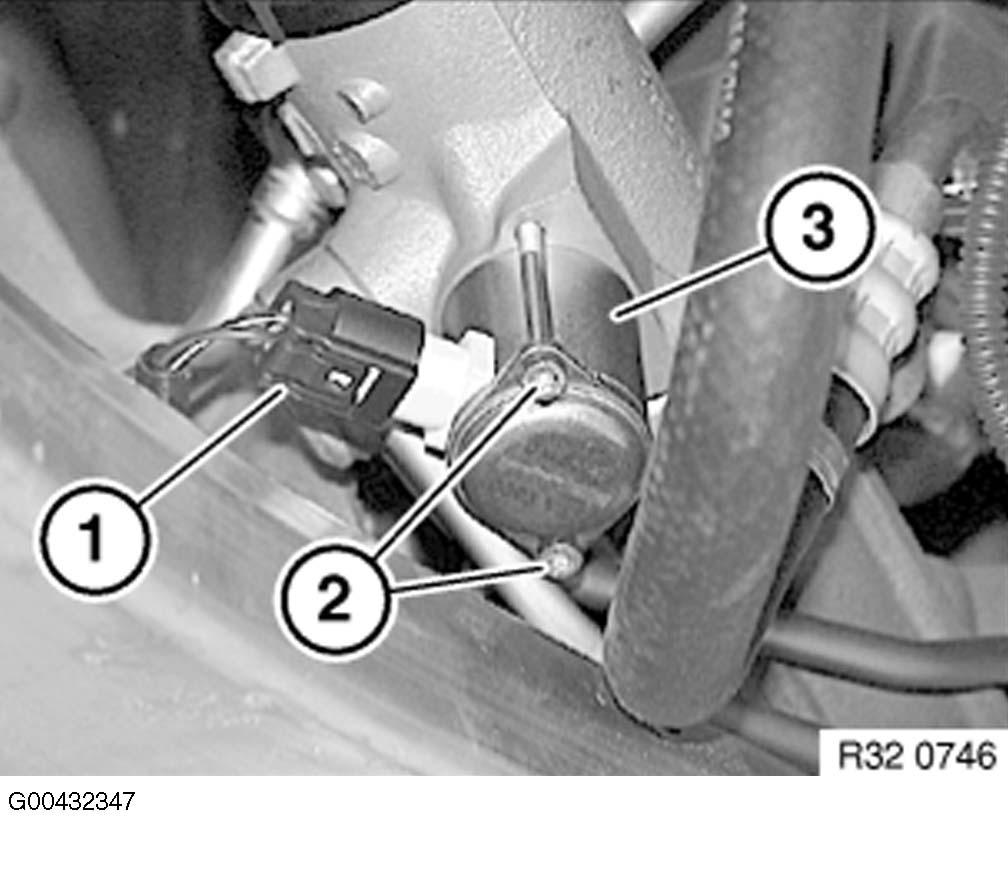

Fig 1: View Of EH Converter

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Fill and bleed hydraulic system. Refer to 32 13 006 BLEEDING POWER STEERING UNIT .
Version with Dynamic Drive: If necessary, carry out initial operation for Dynamic Drive. Refer to INITIALIZING DYNAMIC DRIVE .
