32 31 241 Replacing adjusting lever for steering column
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove lower section of steering column trim. Refer to 32 31 020 REMOVING AND INSTALLING / REPLACING LOWER SECTION OF STEERING COLUMN TRIM .
- Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

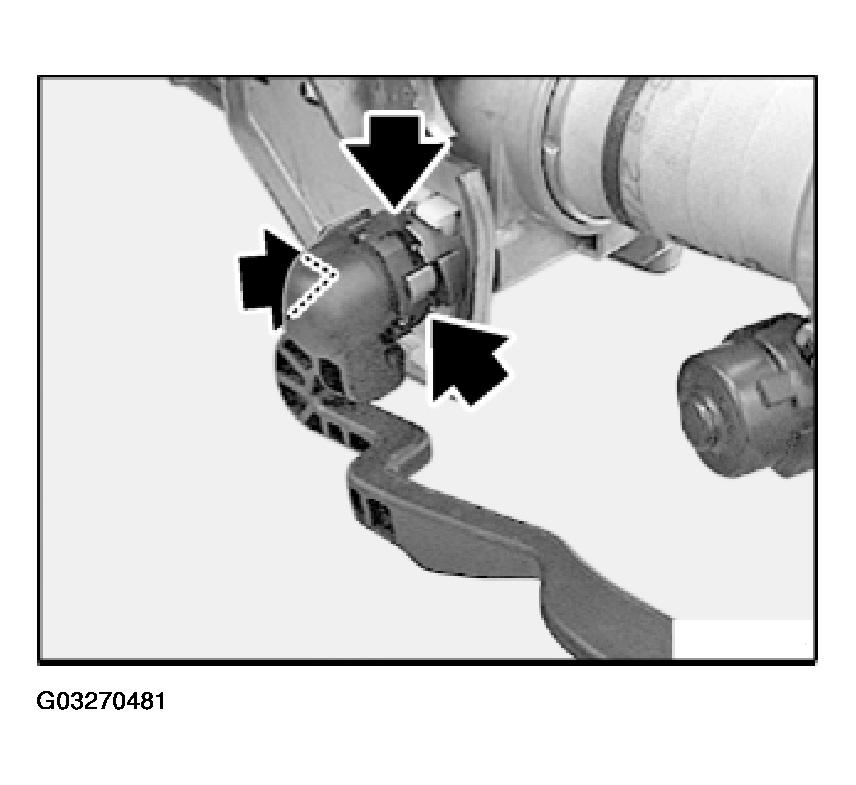

Unclip adjusting lever.
Installation:
Align adjusting lever to steering column and attach straight to prevent the locks from being damaged.
Check locks after attachment, replace adjusting lever if necessary.
