32 31 010 Removing and installing/replacing front section of steering column trim

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Detach front section of trim.

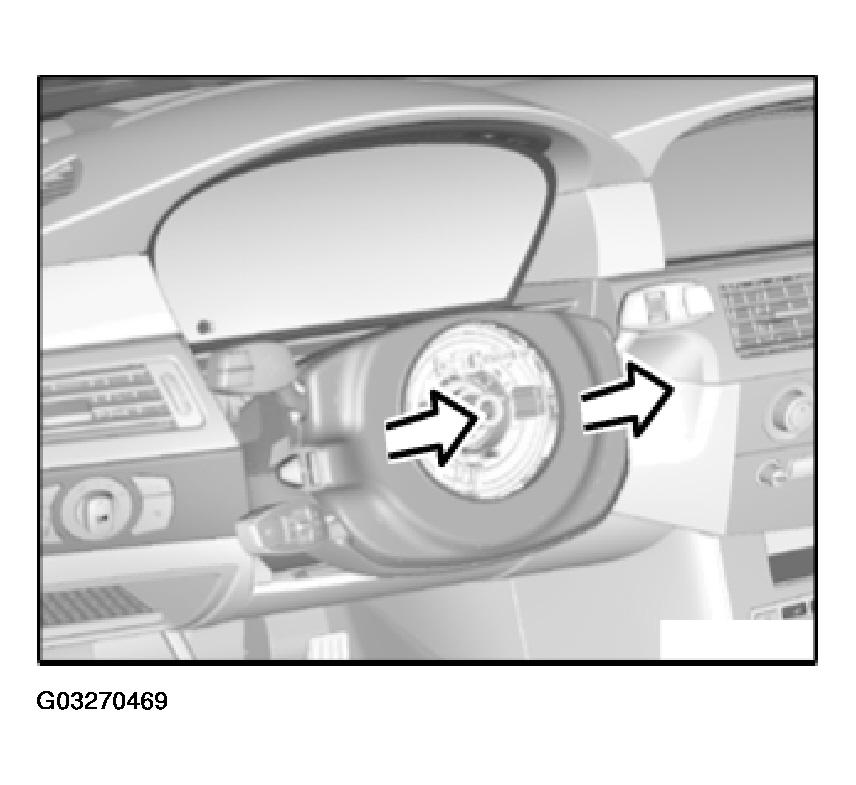

Fig 1: Removing Front Section Of Trim
G03270469Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locks (2) must engage in hooks (1).

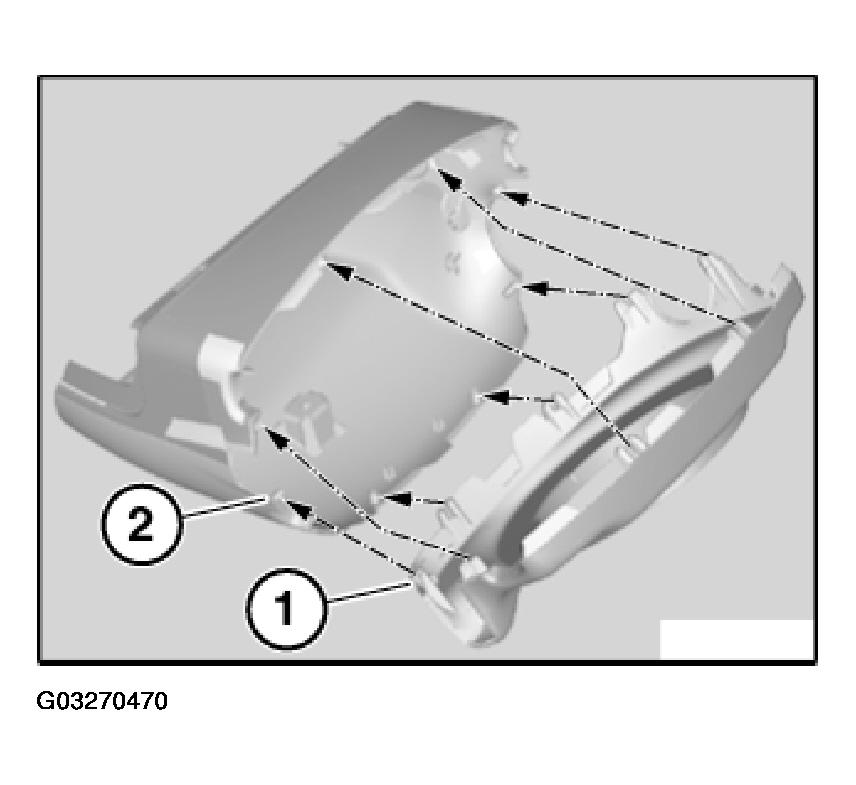

Fig 2: Identifying Locks And Hooks In Front Trim
G03270470Courtesy of BMW OF NORTH AMERICA, INC.
