32 31 004 Removing and installing / replacing upper section of steering column trim

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove lower section of trim. Refer to 32 31 020 REMOVING AND INSTALLING / REPLACING LOWER SECTION OF STEERING COLUMN TRIM .
Move steering column into "lower" and "extended" position.

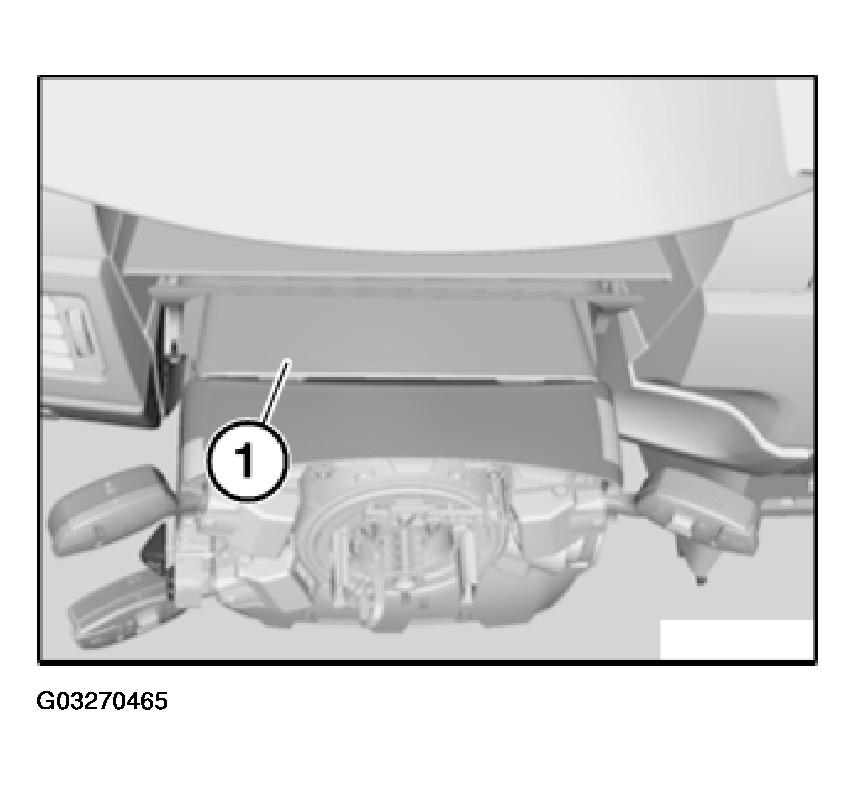

Unclip steering column cover (1) from upper section of trim.

Fig 1: View Of Steering Column Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Installation:

Replace expansion rivets.

Fig 2: Locating Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

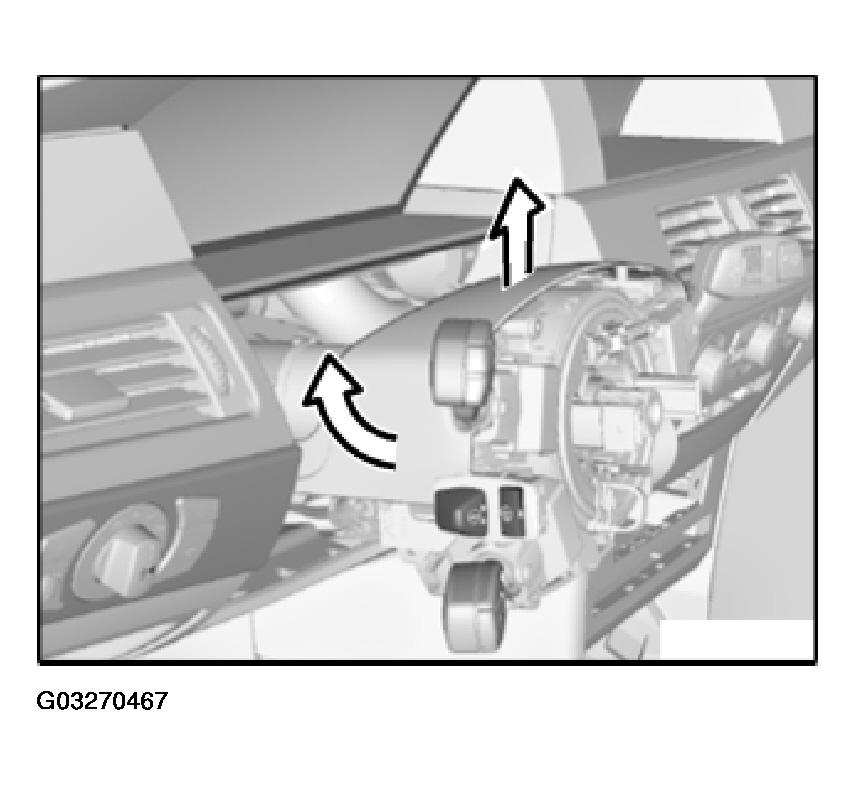

Bend upper section of trim on both sides outwards and remove towards top.

Fig 3: Identifying Upper Section Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

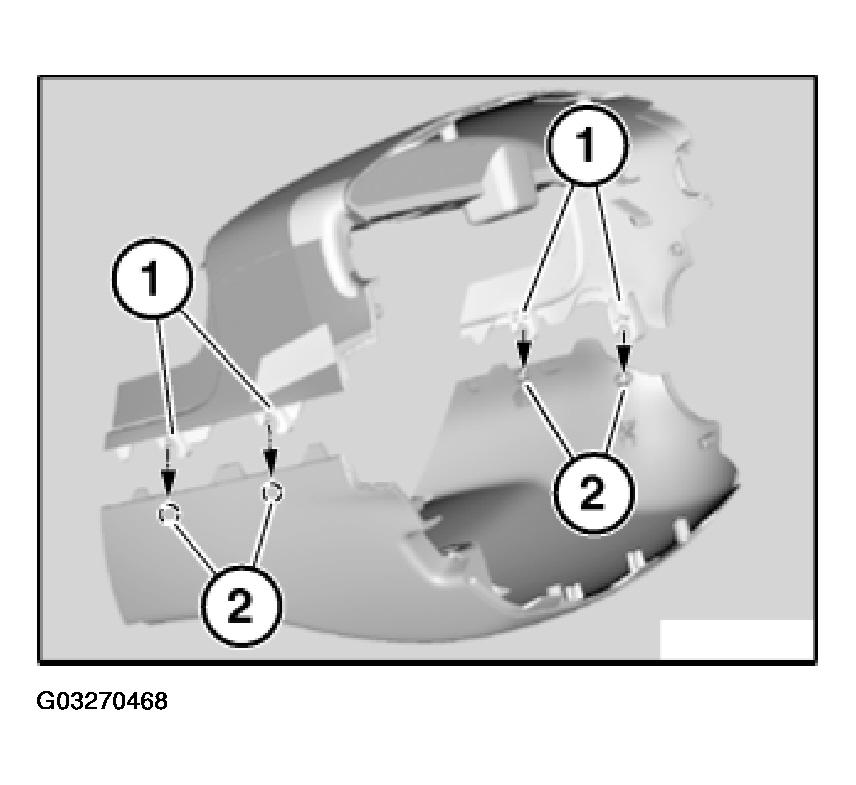

Locks (2) must engage in hooks (1) on both sides.

Fig 4: Locating Locks And Hooks In Cover Trim

Courtesy of BMW OF NORTH AMERICA, INC.
