32 00... Suspension identification by way of label

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The type of suspension can be identified from the label on the spring strut/shock absorber.

Label:

BMW part number.
Type of suspension:
- BA = Standard suspension (basic).
- SP = Sport suspension or rough road package.
- MSP = M Sport suspension.

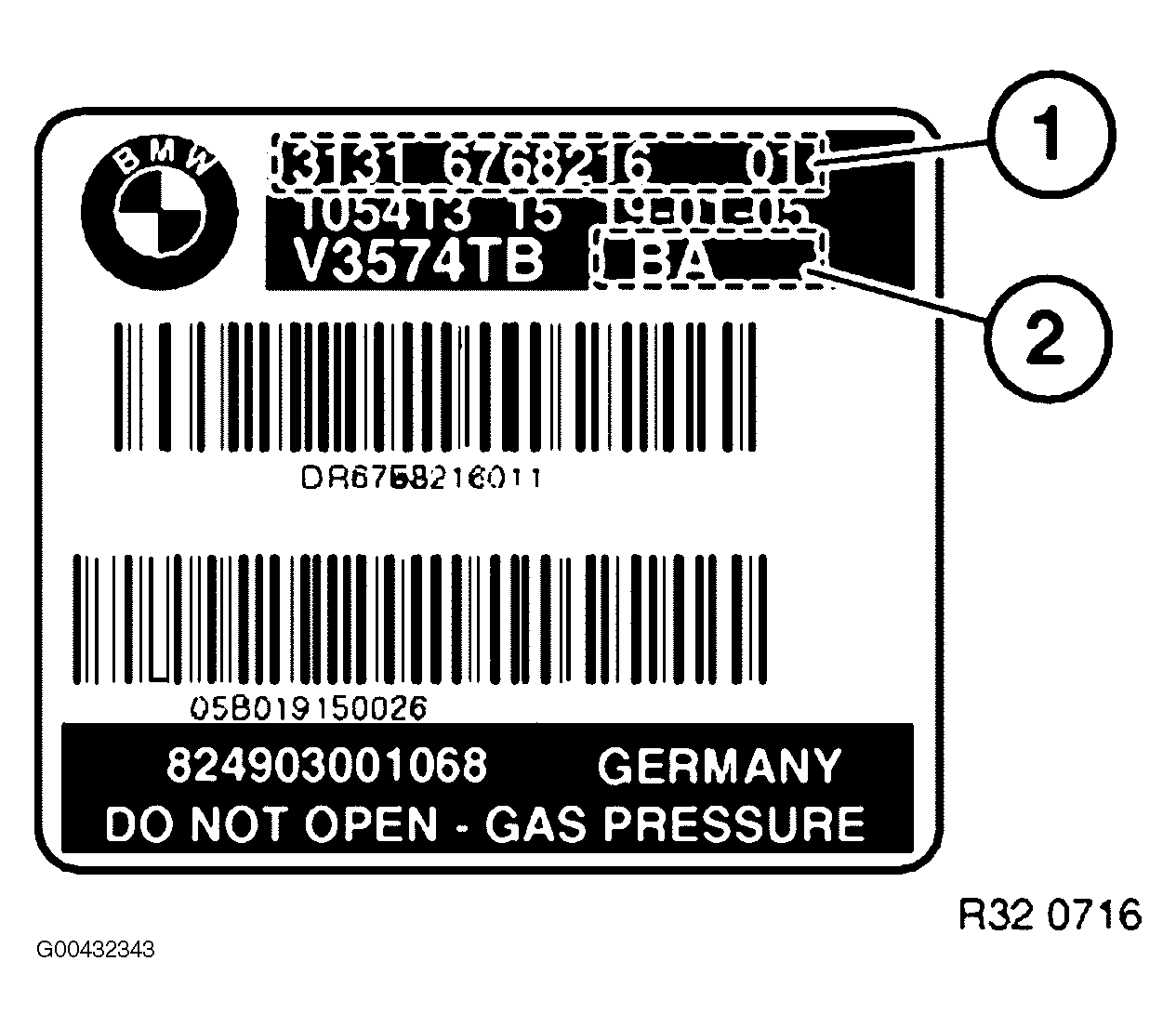

Fig 1: View Of Suspension Label

Courtesy of BMW OF NORTH AMERICA, INC.

In the case of "SP" identification, there is a further distinction between:

Sport suspension without spacer ring (A).
Rough road package with spacer ring (A) above the support bearing.

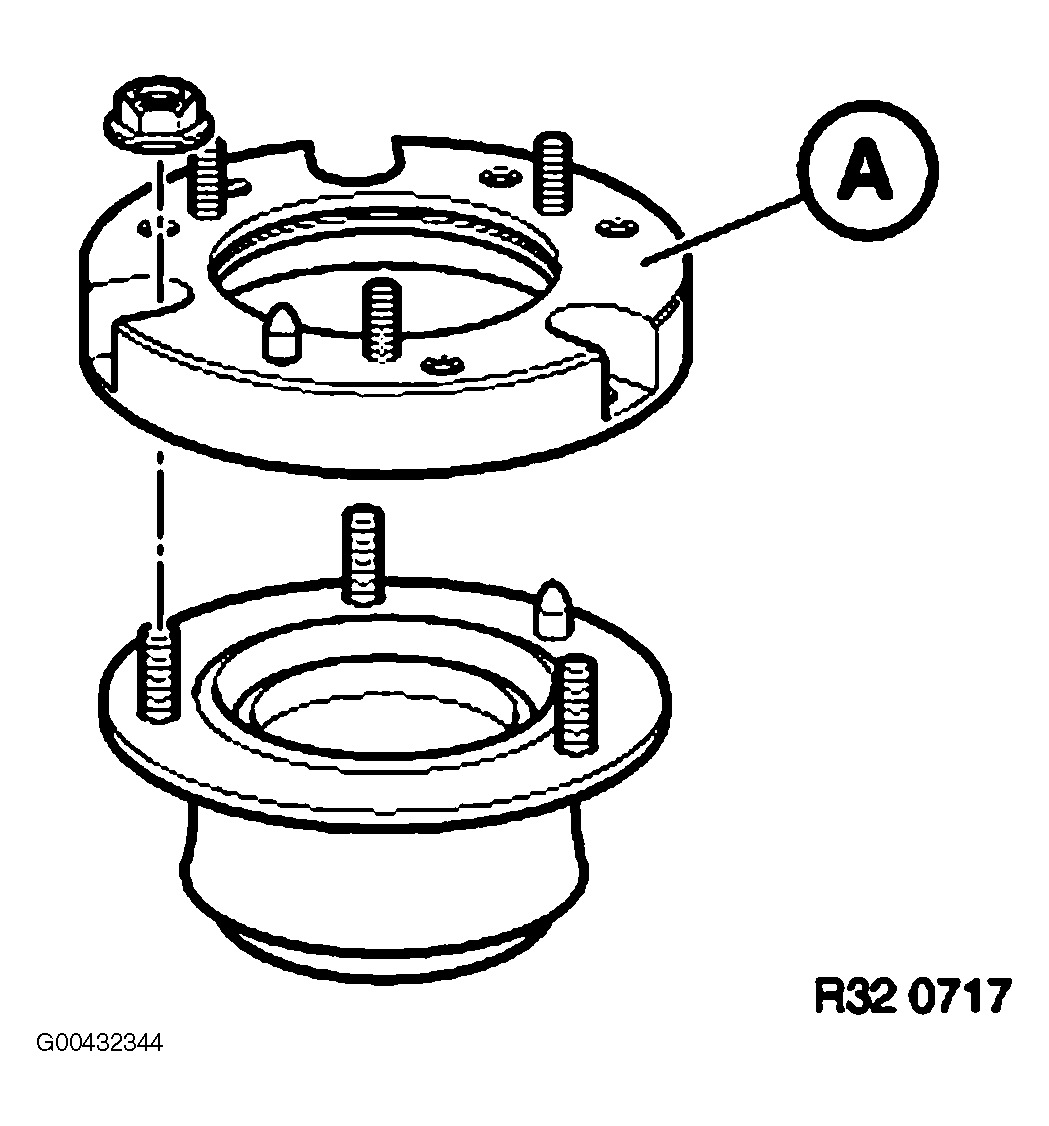

Fig 2: Identifying Spacer Ring

Courtesy of BMW OF NORTH AMERICA, INC.
