17 00 005 Draining and adding coolant (N55)

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 030

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

WARNING: Danger of scalding!
These tasks on the cooling system should only be carried out on an engine that has cooled down!

IMPORTANT: Lifetime coolant filling:
Never reuse used coolant!
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be drained and refilled.
In the case of other removal work involving the draining of partial quantities of coolant, replace these quantities which have been drained with new coolant.

Installation:

Use only recommended coolant. See COOLING SYSTEM - OPERATING FLUIDS .

Observe mixture ratio .

Protective measures/rules of conduct:

Wear protective goggles
Wear protective gloves
Observe national/country-specific regulations

IMPORTANT: Risk of slipping due to coolant on the floor.
Danger of injury!

Catch and dispose of drained coolant in drip tray (1) and if necessary special tool 00 2 030 (universal hydraulic lifter).

Recycling:

Observe country-specific waste-disposal regulations.

Fig 1: Identifying Special Tool 00 2 030

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Follow instructions for working on cooling system
17 51 000 Removing and installing/replacing intercooler (N54)

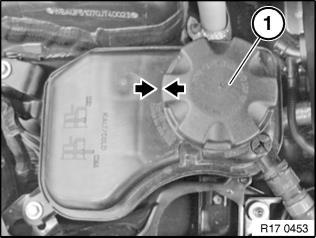

Draining coolant: Open sealing cap (1) on coolant expansion tank (2). Installation note: Close sealing cap (1) until the arrow marks line up.

Fig 2: Open Sealing Cap (1) On Coolant Expansion Tank (2)

Courtesy of BMW OF NORTH AMERICA, INC.

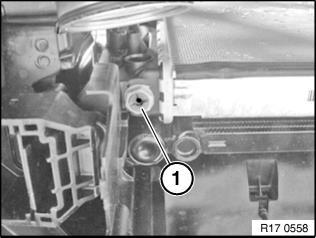

Open coolant drain connector (1). Drain, catch and dispose of coolant. Installation note: Replace sealing ring.

Fig 3: Open Coolant Drain Connector

Courtesy of BMW OF NORTH AMERICA, INC.

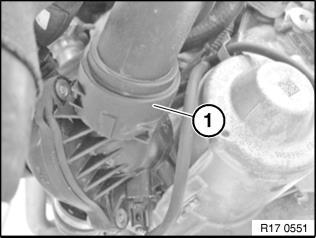

Unfasten and detach coolant hose (1) from thermostat housing. Drain, catch and dispose of coolant.

Fig 4: Unfasten And Detach Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Adding coolant:
Use only recommended coolant . See COOLING SYSTEM - OPERATING FLUIDS .
Observe mixture ratio .
Observe filling capacities . See COOLING SYSTEM - TECHNICAL DATA .
Observe venting instructions without fail.
Fill and vent cooling system .
