61 35 115 Removing And Installing/Replacing Footwell Module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage ( ESD protection) .

Necessary preliminary tasks:

Remove footwell side trim panel on A-pillar, left . See 51 43 070 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT .

Disconnect plug connection (1).

Release nuts (2) and remove footwell module (3).

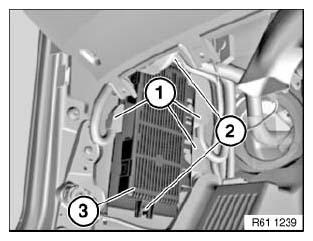

Fig 1: Identifying Footwell Module, Plug Connection & Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/coding.
