Adjusting Levers
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

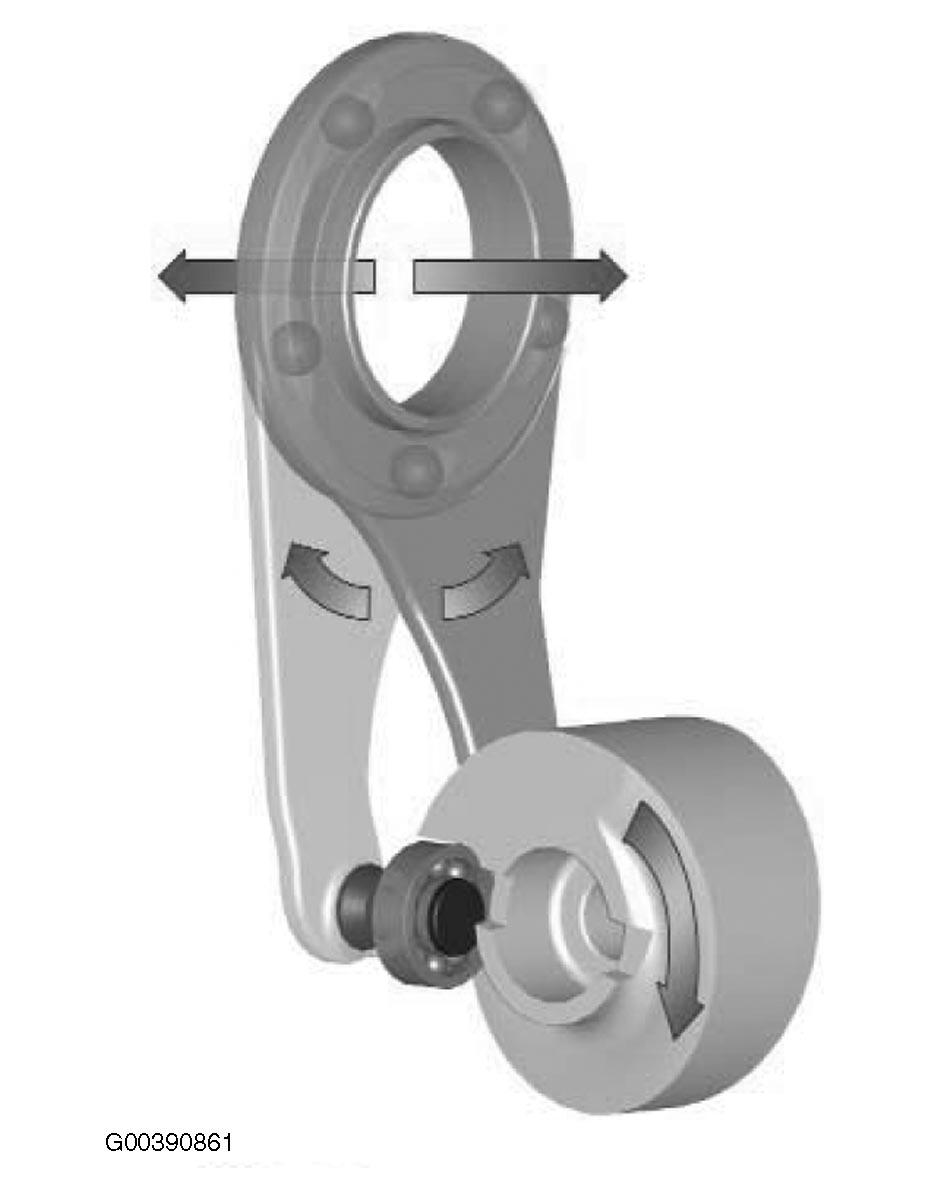

When the disc cam is rotated, it forces the adjusting levers apart. The ball ramps create a precision axial movement which compresses and increases pressure on the multi-disc clutch. This is completely variable up to a full lock. See Fig 1 .
