65 83 550 Removing and installing/replacing fan for Car Communication Computer

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove CAR COMMUNICATION COMPUTER

Raise retaining hook (1) and turn fan for Car Communication Computer (2) in direction of arrow.

Remove fan for Car Communication Computer (2) from Car Communication Computer (3).

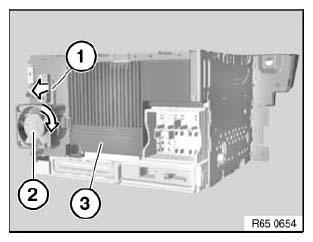

Fig 1: Raising Retaining Hook And Turning Fan For Car Communication Computer

Courtesy of BMW OF NORTH AMERICA, INC.
