61 21... Removing and installing battery cover
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove flap in luggage compartment panel on right. See REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL (WITH STOWAGE PACK) and REMOVING AND INSTALLING / REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT
- Remove rear trim for luggage compartment floor. See REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL (WITH STOWAGE PACK) and 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL

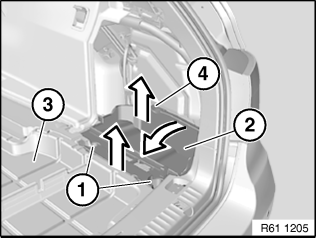

Unscrew nuts (1).
Release screw (4).
Fold back battery cover (2) in direction of arrow.
If necessary, lift luggage compartment floor storage tub (3) in area of battery cover (2).
Remove battery cover (2) towards top.
