65 82 ... Replacing front trim panel of Central Information Display (CID), (09/2009 on)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Front trim panel can only be replaced on versions without glass cover from 09/2009  on.

Necessary preliminary work  : Remove Central Information Display

Release screws (1) and remove front trim panel (2).

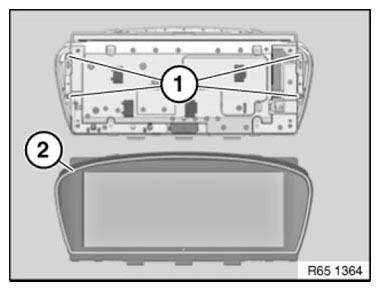

Fig 1: Identifying Screws And Front Trim Panel
G06852105
